SEETEC IPS Full HD 1920x 1080 3G-SDI HDMI DVI LCD 14 13 inch LCD monitor

FOB Reference Price:Get Latest Price
US $499-599 / Piece | 10 Piece/Pieces monitor lcd 14 inch (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month 13 inch led monitor
Port:
xiamen
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Application:
Desktop
Screen Size:
13.3
Response Time:
26
Brightness:
400cd/m
Interface Type:
DVI, HDMI, YPBPR, 3G-SDI, Video, Audio(L/R)
Contrast Ratio:
1000:1
Resolution:
1920 x 1080
Widescreen:
Yes
Panel Type:
IPS
Pixel Pitch:
0.1533(H)*0.1533(V) mm
Brand Name:
SEETEC
Model Number:
P133-9HSD
Place of Origin:
Fujian, China (Mainland)
Description:
monitor lcd 14 inch
Backlight:
LED
Input Voltage:
DC9~24V
Audio:
3.5mm Stereo Headphone, Speaker
Power Consumption:
≤12W
Unit Size:
315.5Lx231Hx26.4D mm (W/O Bracket)
Unit Weight:
1.64kg (W/O Bracket)/ 1.96kg (W/Bracket)
Special Features:
Pixel to Pixel
Center Marker:
Safe Marker
function:
3-color Tally Light
Packaging & Delivery
Packaging Details
Packaging Details: Gift&neutral box 2pcs/carton
Delivery Detail: Within one week after the receipt of the total payment
Delivery Time
5 days after final payment

SEETEC IPS Full HD 1920x 1080 3G-SDI HDMI DVI LCD 14 13 inch LCD monitor

SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.



Features

1. Wide view angle, Full HD 1920x1080, bright, colorful display

2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom

4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR



Parameters



Display Spec.
 Model P133-9HSD
 Screen Size 13.3" IPS
 Color Depth 16.7M
 Resolution 1920×1080 pixels
 Pixe Pitch 0.1533(H)×0.1533(V) mm
 Aspect Ratio 16:9
 Brightness 400cd/m²
 Contrast Ratio 1000:1
 Backlight LED
 Viewing Angle 85°/85°(L/R) 85°/85°(U/D)

Input
 1 X BNC 3G-SDI
 1 X HDMI HDMI
 3 X BNC YPbPr
 1 X DVI-I DVI-I
 1 X BNC Video
 2 X RCA Audio(L/R)

Output
 1 X BNC 3G-SDI
 1 X HDMI HDMI
 3 X BNC YPbPr
 1 X BNC Video

Audio
 Audio Out Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
 Input Voltage DC9~24V
 Power Consumption ≤12W
 Working Temperature -10°C~50°C
 Storage Temperature -20°C~60°C
 Unit Size 315.5L×231H×26.4D mm (W/O Bracket)
 Unit Weight 1.64kg (W/O Bracket)/ 1.96kg (W/Bracket)
Accessories

Standard Accessories:
Mini HDMI Cable
1× V Battery Plate
1× 1.5A Power Adapter
1× Tally Kit
1× Sunshade
1× U bracket
1× Operation Manual

Product Description
Stablity and Reliability
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!

1920X1080 IPS Full HD Panel
With the P133-9HSD's 13.3-inch 1920×1080 IPS Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P133-9HSD's IPS Full HD Panel is the tool of choice for high quality color reproduction.
IPS 170° Wide View Angle
High Quality: no brightened dot, no streaking
170° Wider View Angle: enjoy consistent images from any perspective.
More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

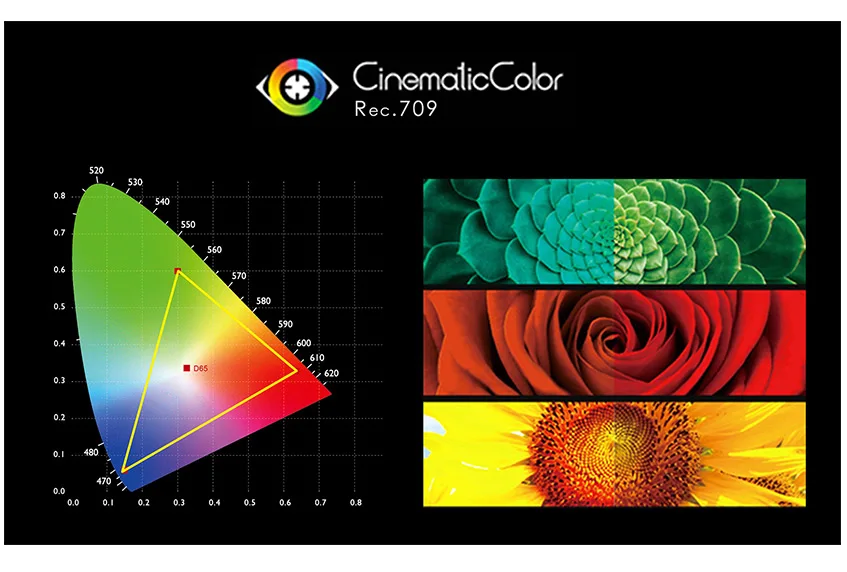

True Color . Professional Color Calibration
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.


Innovation OSD Operation
P133-9HSD not only set up four "F key" for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.



Professional Monitoring
P133-9HSD is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand Professional functions set.

3-color Tally Light
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.

Hassle-free Power
Monitoring anywhere you need it!
We've made it easy to power the monitor. P133-9HSD can be powered in two ways: with an DC adapter or lithium batteries. The P133-9HSD has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

Portable Sunshade
New extended screen hood, to acquire the ideal visual effect in almost all environments.
