Quick Details

  • Products Status: Stock
  • Application: Broadcast monitor
  • Screen Size: 23.8''
  • Response Time: 14ms
  • Brightness: 310 cd/m
  • Interface Type: DVI, HDMI, 3G-SDI, VGA, Audio(L/R), Tally, USB Upgrade
  • Contrast Ratio: 1000:1
  • Resolution: 3840*2160 pixels
  • Widescreen: Yes
  • Panel Type: IPS
  • Pixel Pitch: 0.13725*0.13725 mm
  • Brand Name: SEETEC
  • Model Number: 4K238-9HSD-SCH-CO
  • Place of Origin: Fujian, China (Mainland)
  • Description: photo studio monitor
  • Viewing Angle: 178°(H) / 178°(V)
  • Backlight: LED
  • Audio: 3.5mm Stereo Headphone, Speaker
  • Quad Slip Display: 1P, 2P LR, 2P TB, 2P PIP, 4P
  • Conversion: Built-in SDI-HDMI Cross Converter
  • Input Voltage: DC13~18V
  • Power Consumption: ≤42W

Packaging & Delivery

Packaging Details Gift&neutral box 1pcs/carton
Delivery Time Within one week after the receipt of the total payment

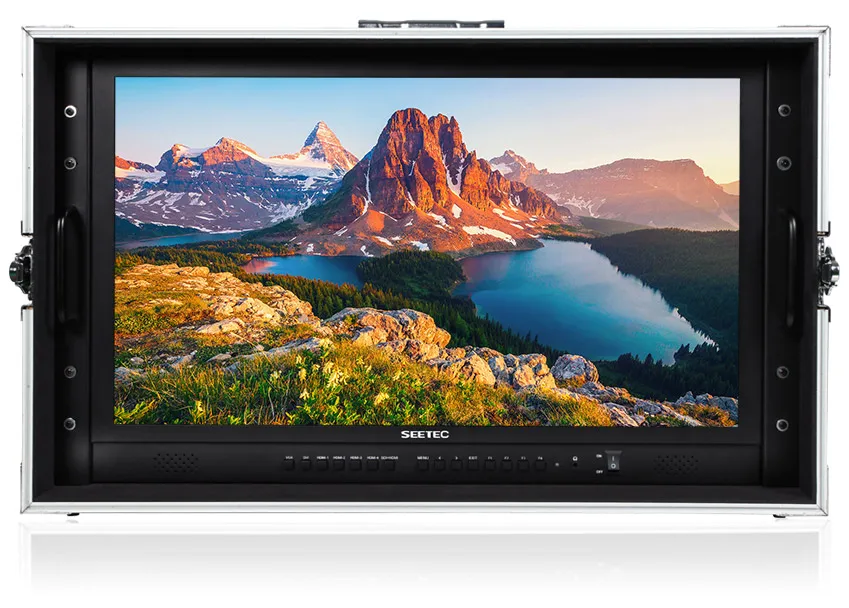

SEETEC 23.8'' IPS 4K 3840*2160 carry-on 3G-SDI photo studio monitor



SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
The full metal case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full metal case improves the anti-interference capability! More Stablity and Reliability!



Parameters



Display Spec.
 Model 4K238-9HSD-SCH-CO
 Screen Size 23.8" IPS
 Color Depth 1.07 Billion colors
 Resolution 3840×2160 pixels
 Pixe Pitch 0.13725×0.13725 mm
 Aspect Ratio 16:9
 Brightness 310cd/m²
 Contrast Ratio 1000:1
 Backlight LED
 Viewing Angle 178°(H) / 178°(V)

Input
 4 X HDMI HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ)
 1 X DVI DVI
 1 X VGA VGA
 2 X RCA Audio(L/R)
 1 X DB-9 Tally

Audio
 Audio Out Headphone, Speaker

HDMI Support Format
4K
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

Built-in SDI HDMI Cross Converter
SDI to HDMI, SDI to SDI, HDMI to SDI, HDMI to HDMI

SDI Signal Conversion Support Format
3G-SDI:1080P(60/59.94/59/50)
HD-SDI:1080P(30/29.97/29/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50)
SD-SDI:576I,480I(60/59.94 )

HDMI Signal Conversion Support Format
1080P(60/59.94/59/50/30/29.97/29/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50)
576I,480I(60/59.94)

General
 Input VoltageDC13~18V
 Power Consumption ≤42W
 Working Temperature -10°C~50°C
 Storage Temperature -20°C~60°C
 Unit Size (mm) 627L×372H×39D (mm) (W/O Suitcase) / 710L×405H×270D (mm) (W/ Suitcase)
 Unit Weight 16kg (with Suitcase)



Product Description
 23.8" 4K Ultra-HD Resolution
The SEETEC 4K resolution (3840 x 2160) 23.8" LCD monitor delivers an immersive 4K experience for images and video, bring unbeatable image clarity in cinematic display.
Quad Slip LCD Display
SEETEC new 4K23.8-9HSD-CO is the professional cost-effective Quad-slip LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.
High Efficiency OSD Operation Design
You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc.
Multiple Inputs
Input:
4 X HDMI (HDMI2.0 X 1, HDMI1.4 X 3)
1 X DVI
1 X VGA
2 X Audio(L/R)
1 X Tally
Audio:
Stereo Headphone, Speaker

Built-in SDI HDMI Cross Converter
You can easy realize SDI/ HDMI signal Conversion by SEETEC 4K238-9HSD-SCH-CO, no need other equipment.
Input:
1 X HDMI, 1 X SDI
Output:
1 X HDMI, 1 X SDI
SDI  HDMI Cross Conversion Mode:
SDI to HDMI, SDI to SDI
SDI to HDMI, SDI to SDI

Innovative Design Portable Aviation Aluminum Case
Specifically Design for Field Production
Collapsable Sunshade
Design for easier viewing in bright environments.

Advanced Feature

1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display
2. HDMIX4, DVI, VGA, Audio(L/R) inputs
3. Built-in SDI  HDMI Cross Converter
4. Special Features:
* Quad Slip Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* Overscan
* Display Rotate (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue)
* Image Freeze
* Zoom
* Aspect Ratio (Full Screen, 16:9, 4:3, 1:1)
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%)
* Line Color (Red, Green, Blue, White)
5. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
6. Built-in LED tally indicators (Red, Green, Yellow)



Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.



Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.





Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
