Quick Details

  • Products Status: Stock
  • Application: Director monitor
  • Screen Size: 17.3''
  • Response Time: 40ms
  • Brightness: 400cd/m
  • Interface Type: DVI, HDMI, YPBPR, 3G-SDI, Video, Audio(L/R)
  • Contrast Ratio: 600:1
  • Resolution: 1920 x 1080
  • Widescreen: Yes
  • Panel Type: TFT
  • Pixel Pitch: 0.1989(H)*0.1989(V) mm
  • Brand Name: SEETEC
  • Model Number: P173-9HSD-CO
  • Place of Origin: Fujian, China (Mainland)
  • Description: Broadcast video camera monitor
  • Viewing Angle: 80°/80°(L/R) 60°/80°(U/D)
  • Backlight: LED
  • Audio: 3.5mm Stereo Headphone, Speaker
  • Power Consumption: ≤26W
  • Input Voltage: DC9~24V

Packaging & Delivery

Packaging Details: Gift&neutral box 1pcs/carton
Delivery Detail: Within one week after the receipt of the total payment





SEETEC 17.3'' IPS full HD 1920*1080 Broadcast video camera monitor with Carry-on suitcase

SEETEC new generation of Carry-On Monitor can be considered a breakthrough and another step up. Variety of sizes available, 17.3'', 21.5'', 23.8'', 28''. A new concept of industrial design takes the structure and space usage of this monitor to an exterme. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.



Parameters



Display Spec.
 Model P173-9HSD-CO
 Screen Size 17.3"
 Color Depth 16.7M
 Resolution 1920×1080 pixels
 Pixe Pitch 0.1989(H)×0.1989(V) mm
 Aspect Ratio 16:9
 Brightness 400cd/m²
 Contrast Ratio 600:1
 Backlight LED
 Viewing Angle 80°/80°(L/R) 60°/80°(U/D)

Input
 1 X BNC 3G-SDI
 1 X HDMI HDMI
 3 X BNC YPbPr
 1 X DVI-I DVI-I
 1 X BNC Video
  2 X RCA Audio(L/R)

Output
 1 X BNC 3G-SDI
 1 X HDMI HDMI
 3 X BNC YPbPr
 1 X BNC Video

Audio
 Audio Out Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General
 Input Voltage DC9~24V
 Power Consumption ≤26W
 Working Temperature -10°C~50°C
 Storage Temperature -20°C~60°C
 Unit Size 414L×280H×35.1D mm (W/O Suitcase)
 Unit Weight 2.75kg (W/O Suitcase)

Product Description

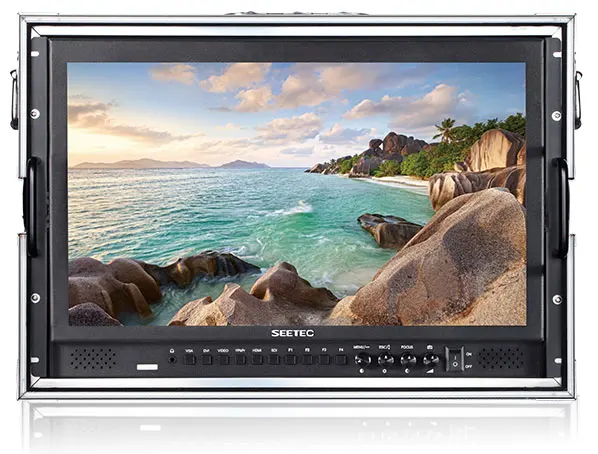

1920X1080 Full HD Panel
With the P173-9HSD-CO's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD-CO's Full HD Panel is the tool of choice for high quality color reproduction.

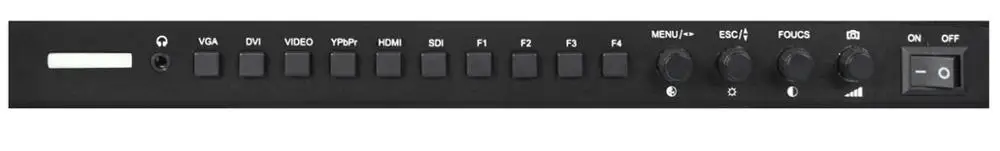

Innovation OSD operation
P173-9HSD-CO not only set up four "F key" for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.

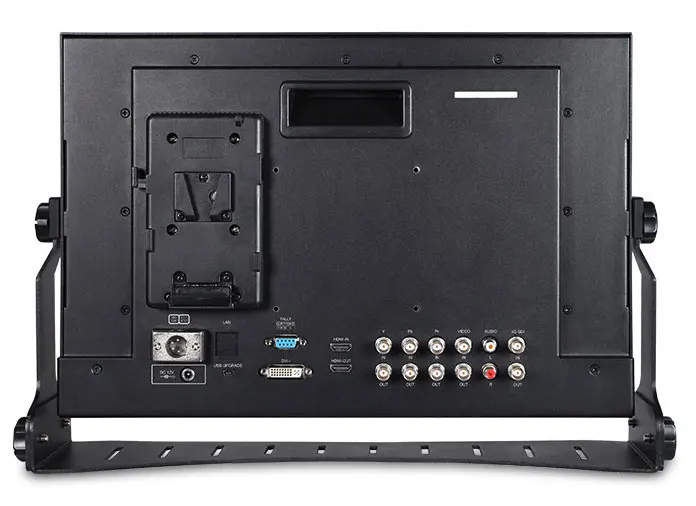

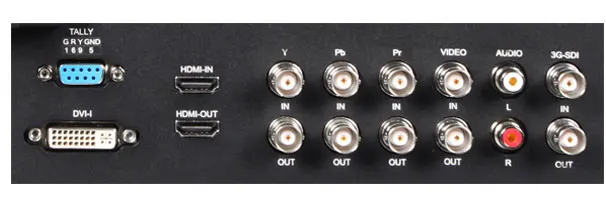

Multiple Inputs and Outputs
Input:
3G-SDI X 1
HDMI X 1
YPbPr X 3
DVI X 1
Video X 1
Auido (L/R) X 2
Output:
3G-SDI X 1
HDMI X 1
YPbPr X 3
Video X 1
Audio:
Stereo Headphone
Internal Speaker

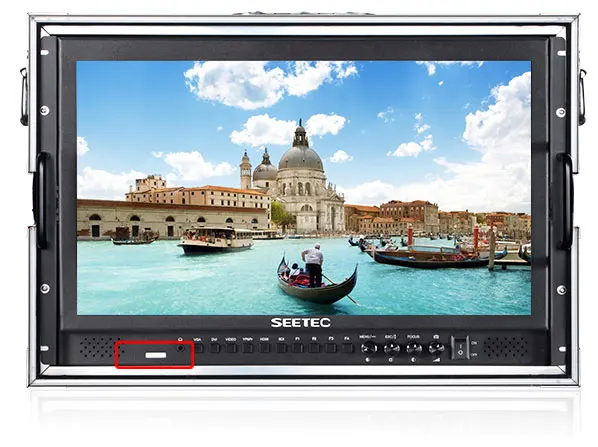

3-color Tally Light
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red, Green, Yellow), and controlled via DB-9 ports on the rear panel.

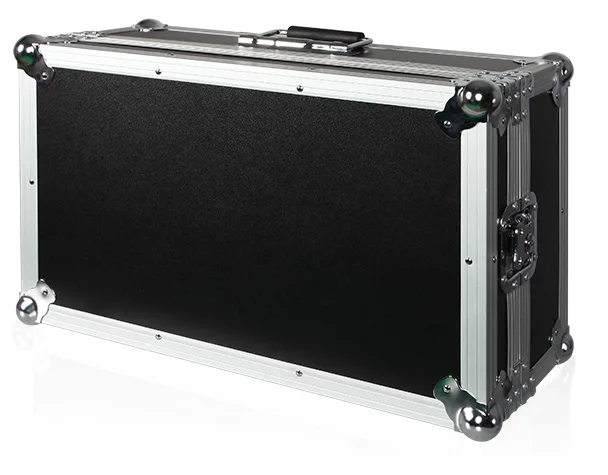

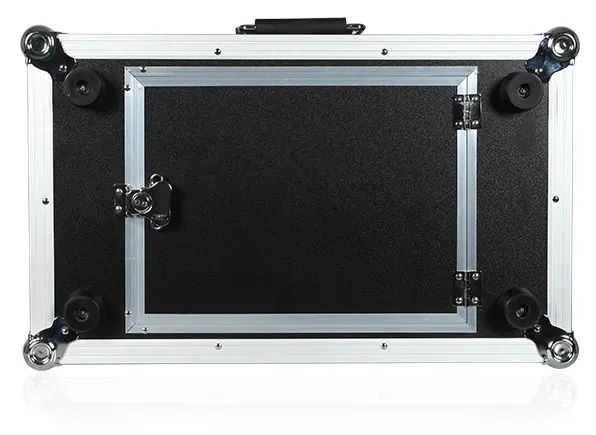

Innovative design portable Aviation Aluminum Case
Specifically Design for Field Production.
Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The P173-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.
Advanced Feature

1. Wide view angle, Full HD 1920x1080, bright, colorful display
2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R) inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR



Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.



Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.



Camera Mode Function
It will be full screen under camera mode.



Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.



Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)



Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
