SEETEC FEELWORLD P173-9HSD 17.3" SDI broadcasting monitor with peaking focus assist

FOB Reference Price:Get Latest Price
US $300-699 / Piece | 1 Piece/Pieces P173-9HSD (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month P173-9HSD
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Application:
Desktop
Screen Size:
17"
Response Time:
16ms
Brightness:
400cd/m
Interface Type:
DVI, HDMI, YPBPR, 3G-SDI, Video, Auido(L/R)
Contrast Ratio:
600:1
Resolution:
1920 x 1080
Widescreen:
Yes
Panel Type:
TFT
Pixel Pitch:
0.1989(H)*0.1989(V) mm
Brand Name:
SEETEC
Model Number:
P173-9HSD
Place of Origin:
Fujian, China (Mainland)
Description::
17.3" director monitor
Model:
P173-9HSD
* Peaking Focus Assist:
(Red highlight over parts of the monochrome image in focus)
* Check Field:
(Red, Green, Blue, Mono)
* Center Marker:
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip:
(Horizontal, Vertical, Hor&Ver)
* Image Freeze:
YES
Backlight:
LED Backlight
Condition:
A+ Grade
Color:
Black
Packaging & Delivery
Packaging Details
1PCS/Carton
Delivery Time
Within 7working days after the payment

SEETEC FEELWORLD P173-9HSD 17.3" SDI broadcasting monitor with peaking focus assist

SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.

Product Description
Stability and Reliability
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!



1920X1080 Full HD Panel
With the P173-9HSD's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD's Full HD Panel is the tool of choice for high quality color reproduction.

True Color . Professional Color Calibration
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

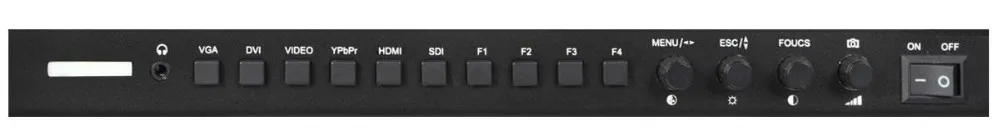

Innovation OSD Operation
P173-9HSD not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.

Professional Monitoring
P173-9HSD is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand Professional functions set.

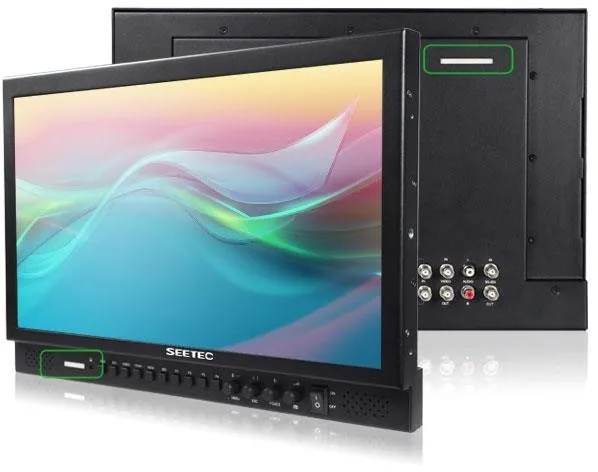

3-color Tally Light
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.

Hassle-free Power
Monitoring anywhere you need it!

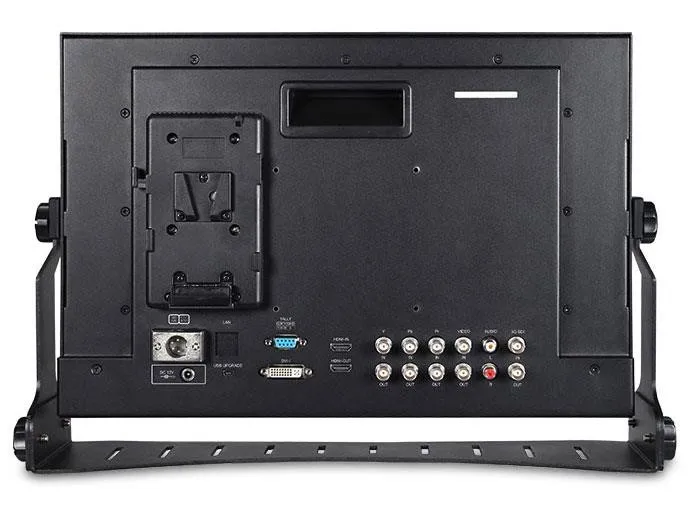

We've made it easy to power the monitor. P173-9HSD can be powered in two ways: with an DC adapter or lithium batteries. The P173-9HSD has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

Portable Sunshade
New extended screen hood, to acquire the ideal visual effect in almost all environments.

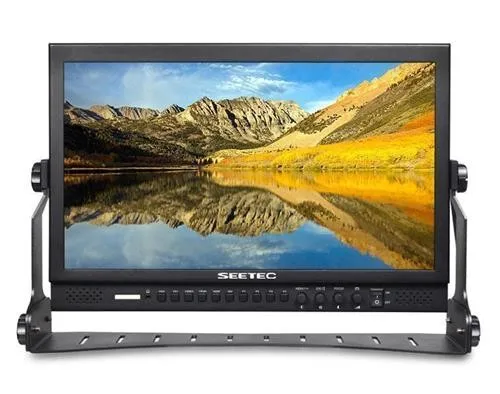

Mounting Points
Attach to camera support or hang it anywhere
There are 3 mounting points located on the U-shaped bracket. The standard sized mounting points make it easy to mount and are compatible with third party rigging equipment. Using the ¼ inch holes, you can hang it from rigs or mounted it on the camera support, and use it as a monitor for the entire crew. And you can also set it up on a table to monitor.

Parameters
Display Spec.
 Model P173-9HSD
 Screen Size 17.3"
 Color Depth 16.7M
 Resolution 1920×1080 pixels
 Pixe Pitch 0.1989(H)×0.1989(V) mm
 Aspect Ratio 16:9
 Brightness 400cd/m²
 Contrast Ratio 600:1
 Backlight LED
 Viewing Angle 80°/80°(L/R) 60°/80°(U/D)

Input
 1 X BNC 3G-SDI
 1 X HDMI HDMI
 3 X BNC YPbPr
 1 X DVI-I DVI-I
 1 X BNC Video
  2 X RCA Audio(L/R)

Output
 1 X BNC 3G-SDI
 1 X HDMI HDMI
 3 X BNC YPbPr
 1 X BNC Video

Audio
 Audio Out Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
 Input Voltage DC9~24V
 Power Consumption ≤26W
 Working Temperature -10°C~50°C
 Storage Temperature -20°C~60°C
 Unit Size 426L×285H×35.1D mm (W/O Bracelet)
 Unit Weight 2.75kg (W/O Bracket) / 3.30kg (W/ Bracket)



Features

 1. Wide view angle, Full HD 1920x1080, bright, colorful display

2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom

4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR
Accessories

Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate
1× 3A Power Adapter
1× Tally Kit
1× Sunshade
1× U bracket
1× Operation Manual



Company Information

SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.

Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.

SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.

We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.

We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.
