Quick Details

  • Products Status: Stock
  • Application: Field monitor
  • Screen Size: 5.5''
  • Response Time: 15ms
  • Brightness: 450cd/m
  • Interface Type: HDMI, 3G/HD/SD-SDI,3.5mm Audio Jack
  • Contrast Ratio: 1000:1
  • Resolution: 1920 x 1080
  • Widescreen: Yes
  • Panel Type: IPS
  • Pixel Pitch: 0.063x0.021 mm
  • Brand Name: FEELWORLD
  • Model Number: G55
  • Place of Origin: Fujian, China (Mainland)
  • Description: video monitoring
  • Backlight: LED
  • Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
  • Aspect Ratio: 16:9
  • Unit Size: 154Lx90Hx28.86D mm
  • Unit Weight: 360g/385g (With F970 Plate)
  • Power Consumption: ≤11W
  • Input Voltage: DC 7V-24V

Packaging & Delivery

Packaging Details Gift&neutral box 10 pcs/carton
Delivery Time Shipped in 15 days after payment



FEELWORLD 5.5 inch IPS Full HD 1920x1080 SDI video monitoring with Waveform Histogram



The FEELWORLD G55 has a bright 5.5 inch Full HD 1920 x 1080 high resolution display so you don’t have to carry extra on set monitors and scopes. You can mount it on cameras as a large monitor for the crew, hand it to the cinematographer for composing the shot, or set it in front of the director to review each take. The screen has a wide 160º viewing angle, which means it’s easy to see, even when several crew members are watching. You can view any SD or HD format over SDI and HDMI connections.
The most effective tool for framing, focusing and exposing your image, it features a mode that tiles histogram, audio bar, vector scope, RGB histogram, and YUV waveform in a border surrounding your video image, allowing you an unobstructed view of your video and scopes at the same time.
Aluminum Metal Frame Design Light weight, durable construction.You get a heavy duty metal that is comfortable enough to hold in your hand and still light enough to be mounted on even the smallest rig.

Parameters

Display Spec.
 Model G55
 Size 5.5" IPS
 Resolution 1920×1080 pixels
 Pixe Pitch 0.063×0.021 mm
 Aspect Ratio 16:9
 Brightness 450cd/m²
 Contrast Ratio 1000:1
 Backlight LED
 Viewing Angle 80°/80°(L/R) 80°/80°(U/D)

Input
 1 X BNC 3G-SDI
 1 X HDMI HDMI
 1 X USB Tally

Output
 1 X BNC 3G-SDI
 1 X HDMI HDMI

Audio
 Audio Out Stereo Headphone

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General
 Input Voltage DC7~24V
 Power Consumption ≤11W
 Power Connector DC
 Battery Plate F970 (Standard); D28S, LP-E6 (Optional)
 Working Temperature -20°C~55°C
 Storage Temperature -30°C~65°C
 Install Way 1/4"-20 Thread Socket
 Unit Size 154Lx90Hx28.86D mm
 Unit Weight 360g/385g (With F970 Plate)
Product Description



 Full HD 1920X1080 IPS Panel

Better Monitoring, Super bright and clear HD display

With a 450cd/m² bright 5.5 inch high resolution 1920 x 1080 monitor and high contrast 1000:1, FEELWORLD G55 can be added to any camera to ensure perfect focus and framing. The panel features IPS technology that allows for near-perfect 160° viewing angles and deeper, richer, more accurate colors.The G55’s IPS HD Panel is the tool of choice for high quality color reproduction.

Multi-format Input/Output



Connect to professional cameras, camcorders and DSLR’s

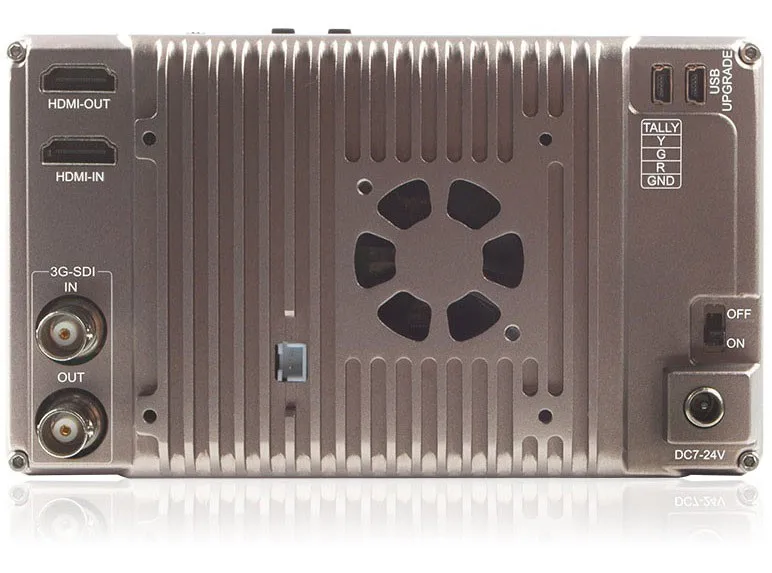

The compact design of the FEELWORLD G55 includes HDMI and 3G-SDI inputs, so you can record from virtually any video camera or DSLR. The loop through output lets you monitor on larger HD broadcast displays or HDMI projectors. Audio can be monitored from the 3.5mm stereo headphone jack and for studio shoots, the DC7-24V universal power supply gives you continuous operation.

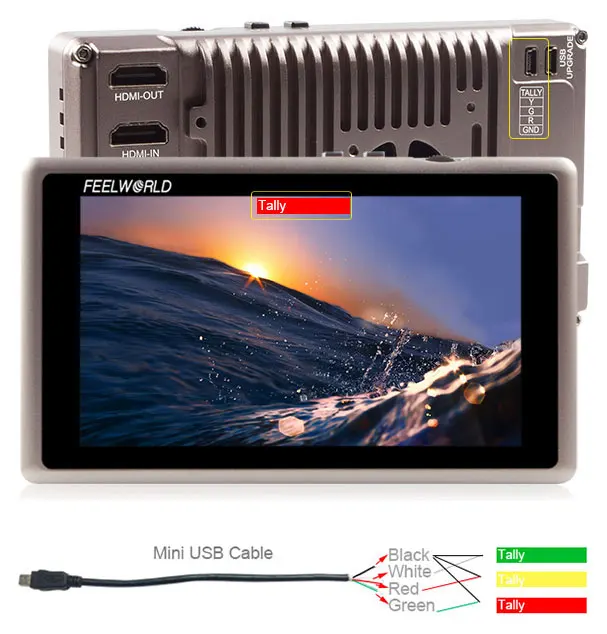

3-color Tally Light
mini USB input signal
There is front TALLY lights for each screen with 3 colors display (Red,Green,Yellow), and controlled via Mini USB ports on the rear panel.
Flexible Battery System
The G55 has a flexible battery system that supports F970, D28S, E6 battery plate of your choice.


Advanced Feature

 1. 1920×1080, 1000:1 contrast, IPS wide view angle H/V 160°
2. 3G/HD/SD-SDI, HDMI input and loop-through output
3. Monitoring via 3.5mm stereo headphone jacks
4. Built-in LED tally indicators (Red, Green, Yellow)
5. Special Features:
*Waveform (RGB, YUV, Y (Luminance)
*Vector Scope
*Color Histogram
*Histogram
*Focus Assist (Red, Green, Blue, White four color optional highlight over parts of the image in focus)
*Embedded Audio Meter
*False Color
*Zebra Exposure
*Internal Colorbar
*Squared Segmentation
*Camera Mode
*Scan Mode (Auto, Over Scan, Full Screen)
*Real time video zoom-in (Standard, 4x, 9x,16x)
*Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
*Pixel to Pixel
*Center Marker
*Safe Area (80%, 85%, 90%, 93%, 96%)
*Marker Type (16:9, 4:3, 2.35:1, 1.85:1)
*Marker Color (Red, Green, Blue, White, Gray, Black)
*Check Field (Gray/ Red/ Green/ Blue)
*Image Flip (Horizontal, Vertical, Hor&Ver)
*Image Freeze

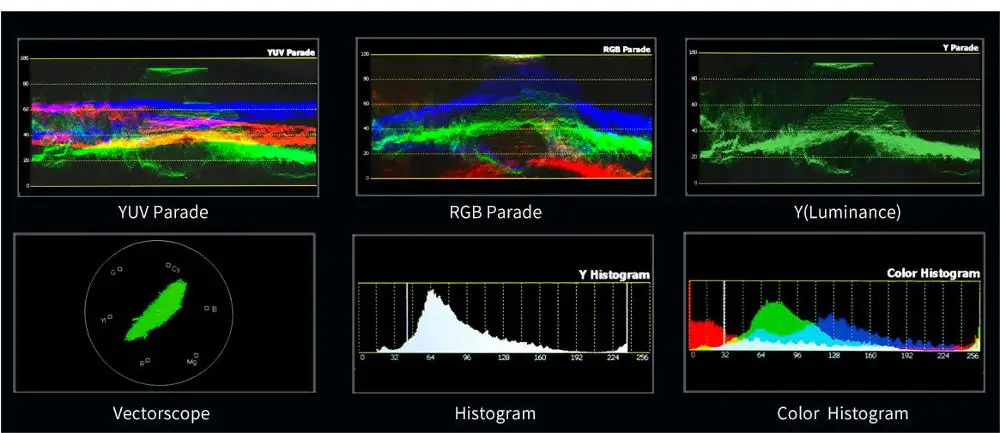

Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Color Histogram
Color histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels in overlay histogram. Suitable for HD-SDI and HDMI signal monitoring.

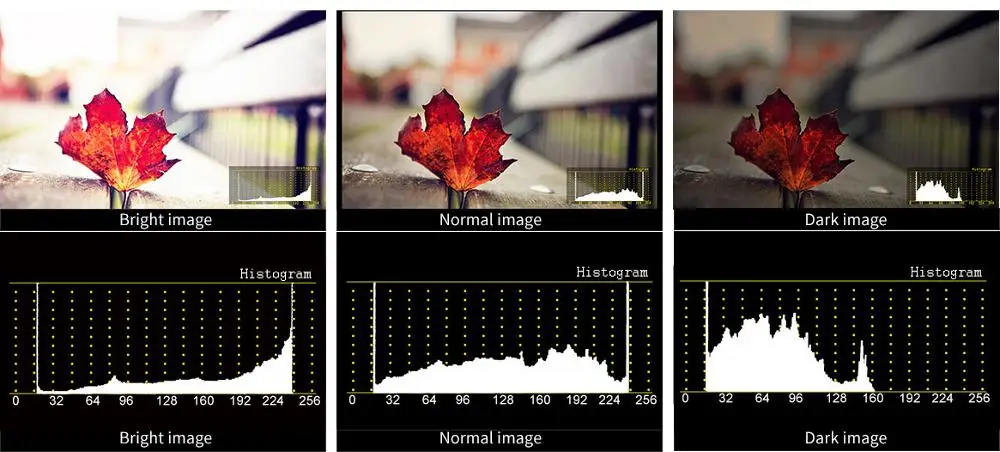

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

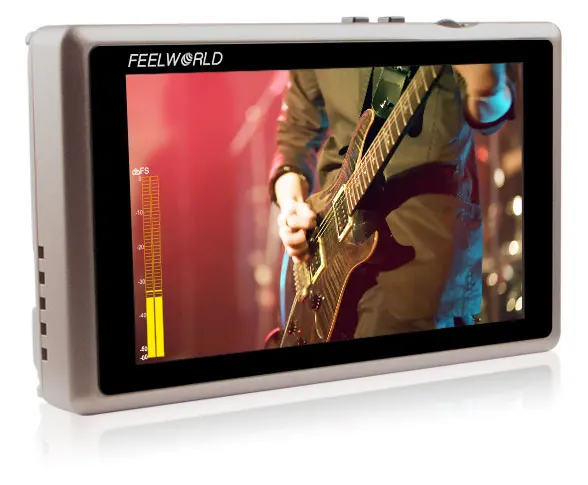

Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.

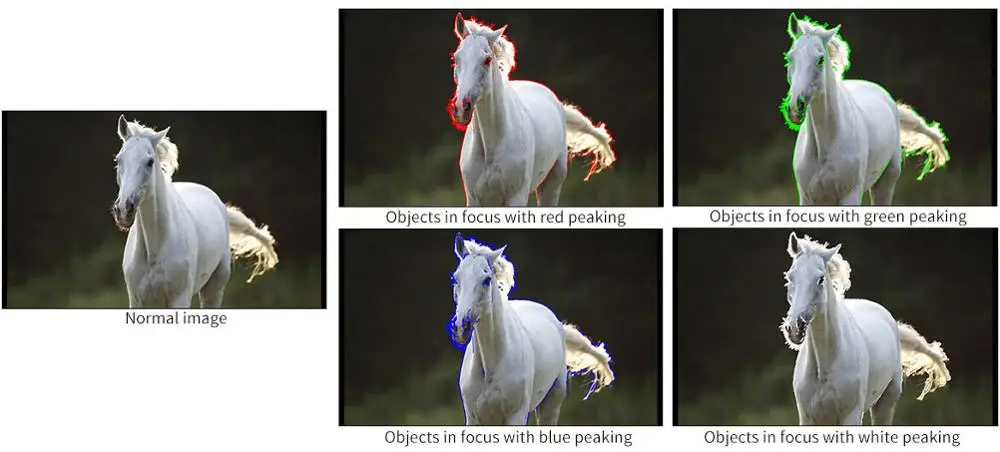

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue and white according to different tone of the subject.Peaking focus assist of G55 has High-low level to adjust, and also available during video zoom-in.

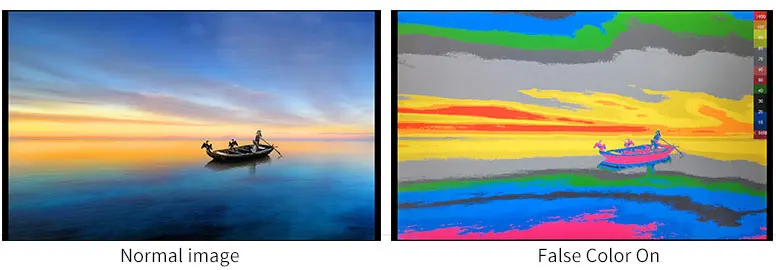

False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern, it is considered overexposed and displays the moving warning lines onto the over exposed areas.



Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.



Anamorphic Mode
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.

Squared Segmentation
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black, Cyan, Purple, Yellow according to different tone of the subject.
