Quick Details

  • Products Status: Stock
  • Screen Size: 7''
  • Response Time: 10ms
  • Brightness: 450cd/m
  • Interface Type: HDMI, YPBPR, 3G/HD/SD-SDI,Video, Audio
  • Contrast Ratio: 700:1
  • Resolution: 1024x600
  • Widescreen: Yes
  • Panel Type: TFT
  • Pixel Pitch: 0.05(H)*0.15(V)mm
  • Brand Name: SEETEC
  • Model Number: ST679-JC/S
  • Place of Origin: Fujian, China (Mainland)
  • Description: 7'' sdi field lcd monitor
  • Backlight: LED
  • Viewing Angle: 75°/75°(L/R) 70°/75°(U/D)
  • Tally Indicator: Yes
  • Built-in Speaker: Yes
  • Power Consumption: ≤8.5W
  • Input Voltage: DC7V-12V±10%
  • Install Way: 1/4"-20 Thread Socket(All 4 Sides)
  • Unit Size: 205L * 144W * 41.5H(mm)
  • Unit Weight: 750g

Packaging & Delivery

Packaging Details: Gift&neutral box 10 pcs/carton
Delivery Detail: Within one week after the receipt of the total payment

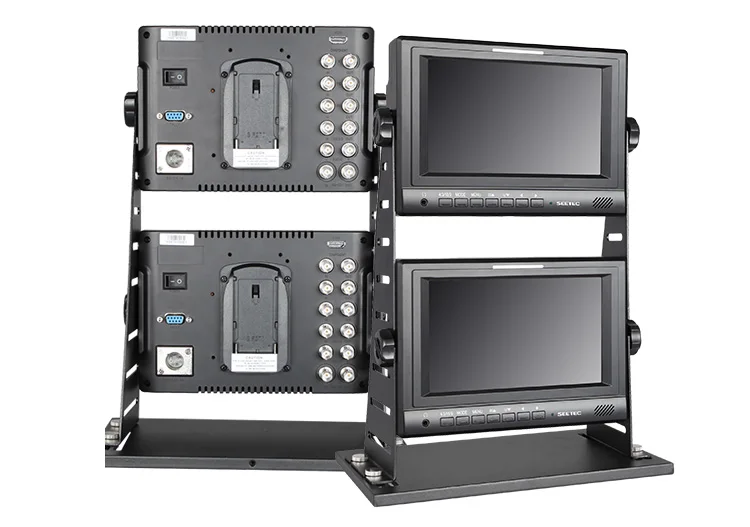

   Jib Monitor



Easy Operation, Time-Saving

SEETEC ST679-JC/S Jib LCD monitors solve the problem of long distance focus, and they are quickly adopted by CCTV, and many provincial & municipal TV stations. The prominent characteristics like high brightness and portability make it much better than traditional CRT monitors. SEETEC jib monitors can match heavy type Jib Crane of top brand. Meanwhile, they’re widely used on a large variety activities.



video camera jib crane broadcasting HDMI 1080P display Pixel-to-Pixel 7'' sdi  field lcd monitor





Parameters
Specification
Descriptionvideo camera jib crane broadcasting HDMI 1080P display Pixel-to-Pixel 7'' sdi  field lcd monitor
ModelST679-JC/S (ST679-JC: W/O SDI)
Resolution                   1024x600
Dot pitch0.05(H)×0.15(V)mm
Aspect ratio16:9
Brightness450cd/m²
Contrast700:1
BacklightLED
Response time10 ms
Viewing Angle75°/75°(L/R) 70°/75°(U/D)
Inputs3G/HD/SD-SDI,HDMI,Ypbpr,Video, Audio
Outputs3G/HD/SD-SDI,Ypbpr,Video, Audio,3.5mm Audio,Built-in Speaker
HDMI Support Mode1080/24p/25p/30p/;50i/50p;60i/60p;720/50p/60p;480i/480p; 576i/576p
Power Consumption≤8.5W
Input VoltageDC7V-12V±10%
working Temperature­10℃~55℃
storage Temperature­20℃~65℃
Install Way1/4"-20 Thread Socket(All 4 Sides)
Unit Size205L × 144W × 41.5H(mm)
Unit Weight750g



SDI Support Mode:Advanced Features
NO.Resolution Catalogue *Peaking Focus Assist
1 1080P@60HZ/59.94HZ3G-SDI*Camera 5D II Mode
2 1080P@50HZ3G-SDI*Check Field(Red,Green,Blue,Mono)
3 1080I@60HZ/59.94HZHD-SDI*Centre Marker
4 1080I@50HZHD-SDI*Screen Marker
5 1080P@30HZ/29.97HZHD-SDI*Full Screen Display in mode of Monitoring & Recording
6 1080P@25HZHD-SDI*4:3&16:9 image adjustable
7 1080P@24HZHD-SDI*Front Earphone Jack
8 720P@60HZ/59.94HZHD-SDI*Image Freeze&Flip
9 720P@50HZHD-SDI*Picture in Picture(PIP)
10 720P@30HZ/29.97HZHD-SDI*H/V Delay
11 720P@25HZHD-SDI*Tally Indicator
12 720P@24HZ/23.97HZHD-SDI*Pixel-to-Pixel Mode
13 480I@60HZ/59.94HZSD-SDI*Underscan/Overscan
14 576I@50HZSD-SDI



Standard AccessoriesOptional AccessoriesPacking Details
FW679-JCBox size24.8x30.5x10.5CM
XLR Power AdapterF970 PlatePer box G.W.4kgs
V Battery PlateD28SPer Carton5pcs
BNC CableAnton PlateCarton Size58X32X26.8CM
Mini HDMI Cable N.W.14kgs/carton
Tally Indicator Light G.W.16kgs/carton
Cloth Sun Shade
Hot Shoe Mount
BNC to RCA Connector
Operation Manual
Metal Jib Set
FW679-JC/S
Cloth Sun ShadeV Mount Plate
F970 PlateD28S
Hot Shoe Mount Anton Plate
Mini HDMI CableBNC Cable
XLR Power AdapterSDI Cable
Tally Indicator LightBNC to RCA Connector
Operation Manual
Metal Jib Set




Advanced Feature



Packaging & Shipping

Gift&neutral box 10 pcs/carton



Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate

Our Services

1.Powerfull Research&Development Experience

2.OEM&ODM Ability

3.Strict QC TEST Control

4.EASY & FAST Communicate

5.Responsible After Service

Company Information

SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.

Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.

SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.

We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.

We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.
