Quick Details

  • Products Status: Stock
  • Application: Camera-top monitor
  • Screen Size: 5''
  • Response Time: 10ms
  • Brightness: 350cd/m
  • Interface Type: HDMI, SDI,Earphone jack
  • Contrast Ratio: 500:1
  • Resolution: 800X480
  • Widescreen: Yes
  • Panel Type: TFT
  • Pixel Pitch: 0.05(W) x 0.15 (H)
  • Brand Name: FEELWORLD
  • Model Number: A5
  • Place of Origin: Fujian, China (Mainland)
  • Description: 5" hdmi monitors
  • Aspect ratio: 16:9
  • Backlight: LED
  • Viewing Angle: 70°/70°(L/R) 50°/70°(U/D)
  • Inputs: HDMI,SDI
  • Outputs: SDI,Earphone jack
  • Input Voltage: DC7V-18V
  • Unit Size: 134L X 97W X28.5H(mm)
  • Unit Weight: 475g
  • Install Way: 1/4"-20 Thread Socket

Packaging & Delivery

Packaging Details Gift&neutral box 10 pcs/carton
Delivery Time Within one week after the receipt of the total payment



FEELWORLD battery support 3G-SDI portable aluminum photographic equipment 16:9 Aspect ratio brightness 350cd/m 5" hdmi monitors

Provides SDI input and output functions, which could identify HD & SD signals automatically. A5 monitor adopt high-end image processing chip, professional 5'' LCD panel with 800x480 resolution, high brightness and high contrast characteristics. Also the wide viewing angle (H.120°/V.140°) could achieve multi-angle picture watchiHDMI SDI input camera top Field display Aluminum shell support low frequency Pixel-to-Pixel 5 inch lcd monitorng and avoid image grey reversal.

As a standard transmission format of broadcast television digital signal, SDI had been adopted by the TV industry all over the world. No matter the filming creating, nor the post editing, all process with SDI for the HD & SD audio / video signals. Most professional HD cameras and hi-end HDV recode and transfer HD video signals by this format as well.

Parameters

Display Spec.
 Model A5
 Screen Size 5"
 Resolution 800×480 pixels
 Dot pitch 0.045(W) ×0.135(H) mm
 Aspect Ratio 16:9
 Brightness 350cd/m²
 Contrast Ratio 500:1
 Backlight LED
 Viewing Angle 70°/70°(L/R) 50°/70°(U/D)

Input
 1 X BNC 3G-SDI
 1 X HDMI HDMI
 1 X OSD controller OSD controller

Output
 1 X HDMI 3G-SDI

Audio
 Audio Out Stereo Headphone

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General
 Input Voltage DC7~18V
 Power Consumption ≤10W
 Power Connector DC
 Battery Plate F970 (Standard); D28S, LP-E6 (Optional)
 Working Temperature -20°C~55°C
 Storage Temperature -30°C~65°C
 Install Way 1/4"-20 Thread Socket
 Unit Size 134L×97H ×28.5D (mm)
 Unit Weight 475g

Advanced Features
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
* Check Field (Red,Green,Blue,Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Flip (H, V, H/V)
* Image Freeze
* Custom Color Temperature
Product Description





Durable Aluminum Construction
The A5's frame is constructed with durable aluminum making it perfect for the professional video shooting. Its solid design ensures the A5 performs at its best even in the roughest terrains, ensuring the monitor's reliability and longevity.



Inputs and Outputs
The A5 features SDI and HDMI inputs and SDI outputs.Since the monitor is all digital you get the purest and cleanest signal directly to the LCD panel.Removing legacy analog inputs and circuits helps keep you image as clean as possible.



Advanced Feature

1. Durable Aluminum Construction
2. 3G-SDI, HDMI inputs and HDMI loop-through output
3. Special Features:
* Peaking Focus Assist (1. Red highlight over parts of the image in focus; 2. Red highlight over parts of the monochrome image in focus)
* Brightness Histogram* False Colors Exposure (zebras)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Custom Color Temperature

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.
False Colors
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

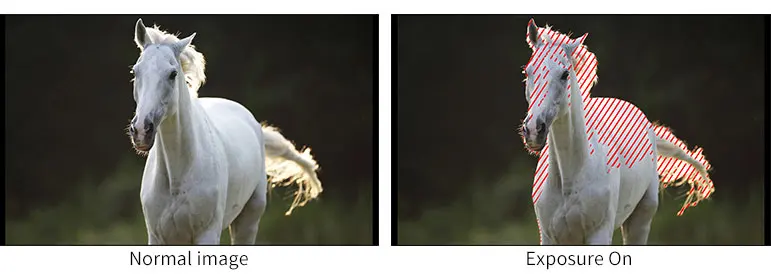

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern, it is considered overexposed and displays the moving warning lines onto the over exposed areas.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

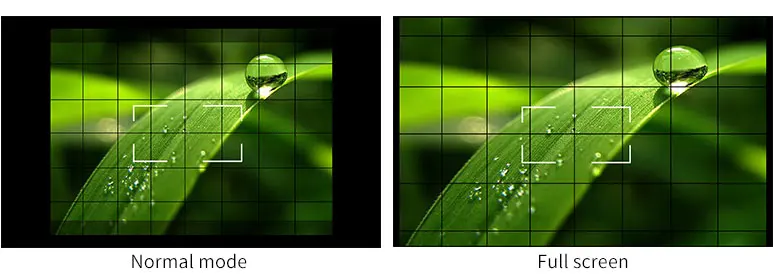

Camera Mode Function
It will be full screen under camera mode.

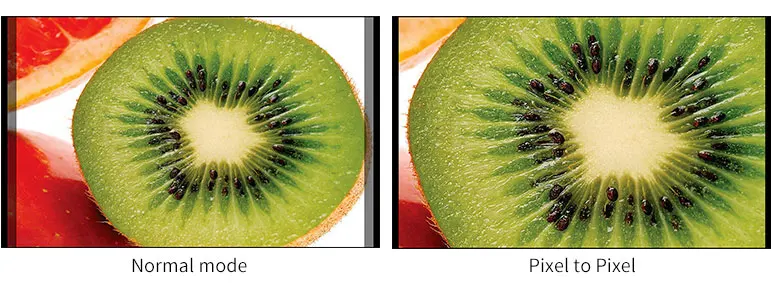

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

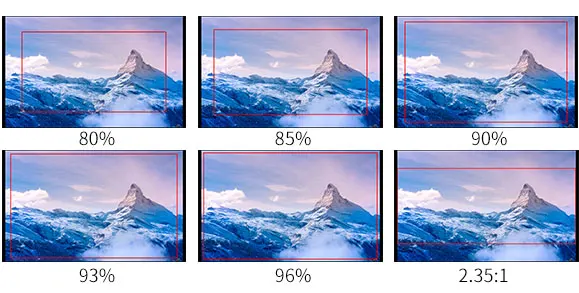

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
