Quick Details

  • Products Status: Stock
  • Application: camera-top monitor
  • Screen Size: 7''
  • Response Time: 25ms
  • Brightness: 400cd/m
  • Interface Type: HDMI, Video,Audio
  • Contrast Ratio: 800:1
  • Resolution: 1280 x 800
  • Widescreen: Yes
  • Panel Type: IPS
  • Pixel Pitch: 0.11775(H) X 0.11775(V)
  • Brand Name: FEELWORLD
  • Model Number: FW759P
  • Place of Origin: Fujian, China (Mainland)
  • Description: field watch monitor
  • Aspect ratio: 16:10
  • Backlight: LED
  • Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
  • ScreenMarker: 80%,85%,90%,93%,96%,2.35:1
  • Install Way: 1/4"-20 Thread Socket(1 bottom side)
  • Input Voltage: 6.5V~35V
  • Unit Weight: 300g

Packaging & Delivery

Packaging Details Gift&neutral box 10 pcs/carton
Delivery Time Within one week after the receipt of the total payment



FEELWORLD 7'' Slim Design IPS 1280x800 on-camera HDMI input field watch monitor with Histogram

FW759P is a specially designed portable LCD monitor for professional HDV and HDSLR Cameras.
Its Super Slim 17mm
Wide viewing angle IPS 1280x800
Professional Peaking Filter
Make it more easy for outdoor shoot

Parameters

Display Spec.
 Model FW759P
 Screen Size 7" IPS
 Resolution 1280×800 pixels
 Dot pitch 0.11775(H) × 0.11775(V) mm
 Aspect Ratio 16:10
 Brightness 400cd/m²
 Contrast Ratio 800:1
 Backlight LED
 Viewing Angle 89°/89°(L/R) 89°/89°(U/D)

Input
 1 X HDMI HDMI
 1 X AV AV
 1 X OSD controller Wire remote OSD controller

Audio
 Audio Out Stereo Headphone, Speaker

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General
 Input Voltage DC6.5~35V
 Power Consumption ≤5W
 Power Connector DC
 Battery Plate F970 (Standard); D28S, LP-E6 (Optional)
 Working Temperature -20°C~50°C
 Storage Temperature -30°C~60°C
 Install Way 1/4"-20 Thread Socket (1 bottom side)
 Unit Size 176L×130H×17D (mm)
 Unit Weight 300g

Advanced Features
* Peaking Focus Assist (1.Red highlight over parts of the image in focus, 2.Red highlight over parts of the monochrome image in focus)
* Brightness Histogram
* False Colors
* Exposure(Zebra)
* Check Field (Red,Green,Blue,Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Flip (H, V, H/V)
* Image Freeze
* Custom Color Temperature
Product Description

IPS Panel and Wider Viewing Angle
Enjoy Consistent Images from Any Perspective. FW759P uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you'll be able to see accurate, consistent and bright images from any point of view.

Wide color gamut LCD panel and 1280×800 resolution ensure the monitor more precise color restoration exquisite picture quality and more rich color.

Ultra-thin Lightweight Design
Specially designed to merge portability,and functionality, 17mm thickness 300g the FW759P gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

Supports a wide range of signal inputs
The FW759P multiple input options include HDMI and AV, and support most DSLRs and camcorders.

HDMI Lock
In order to avoid affecting the shooting from bad connection while use HDMI format for HD signal transmission (actually this problem happens frequently), therefore, we specially designed HDMI lock to ensure the safety of signal transmission.

Collapsable Sunshade
is included for easier viewing in bright environments.

Slim design 17mm 7 inch Field Monitor
Portable Light compatible for Steadycam, DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane.



Advanced Feature
1. Wide view angle IPS Screen, High resolution 1280x800, bright, colorful display
2. The enhanced 400cd/m² backlight and 800:1 color contrast ratio
3. Slim design 17mm, Portable Light compatible for Steadycam, DSLR Rig, Camcorder Kit, HandheldStabilizer, Video Camera Crane
4. Inputs: HDMI, AV, Wire remote OSD controller; Outputs: Built-in Speaker, 3.5mm Audio
5. Special Features:
* Peaking Focus Assist (1. Red highlight over parts of the image in focus; 2. Red highlight over parts of the monochrome image in focus)
* Brightness Histogram
* False Colors
* Exposure (zebras)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Custom Color Temperature

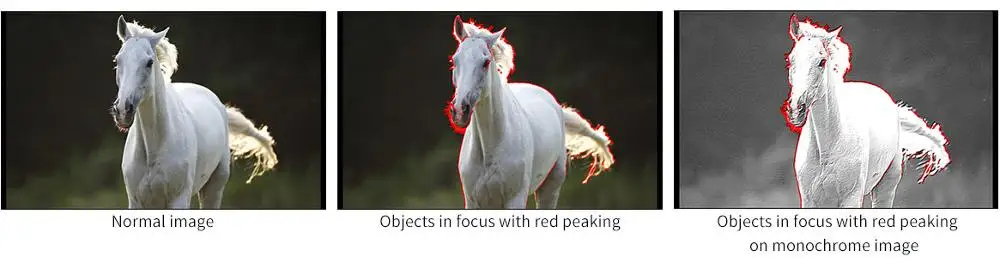

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.

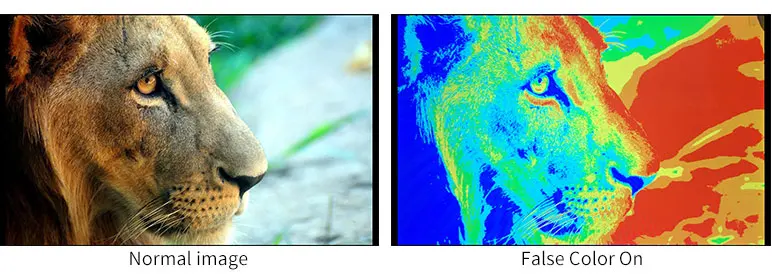

False Colors
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

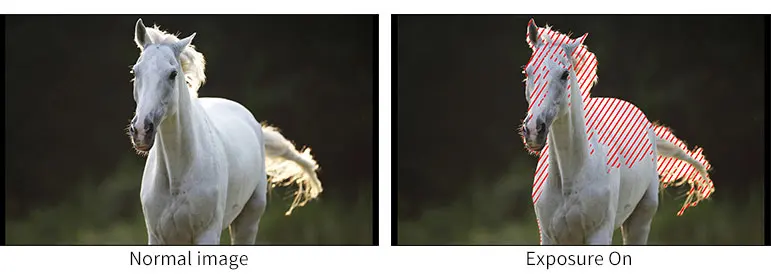

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern, it is considered overexposed and displays the moving warning lines onto the over exposed areas.

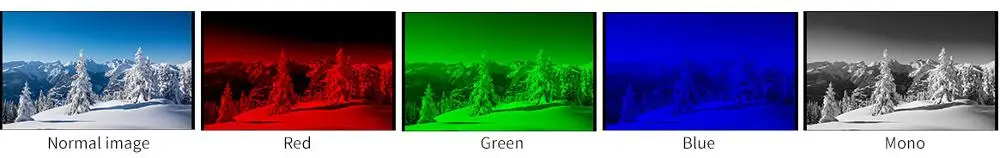

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

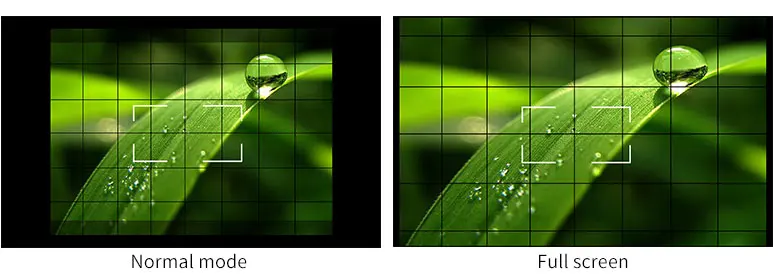

Camera Mode Function
It will be full screen under camera mode.

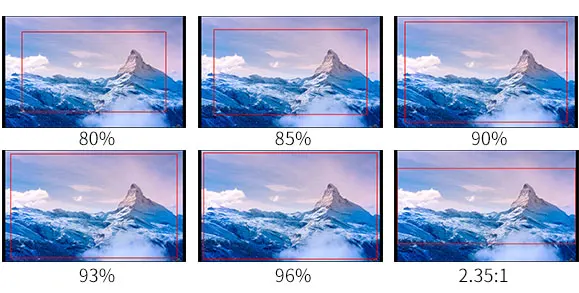

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
